Hi Steve,

One sae paper for all heads to read and get those grey cells back to work again. It's not the easiest to read, but for the technically orientated minds I think it is very interesting. It's probably 20+ years old.

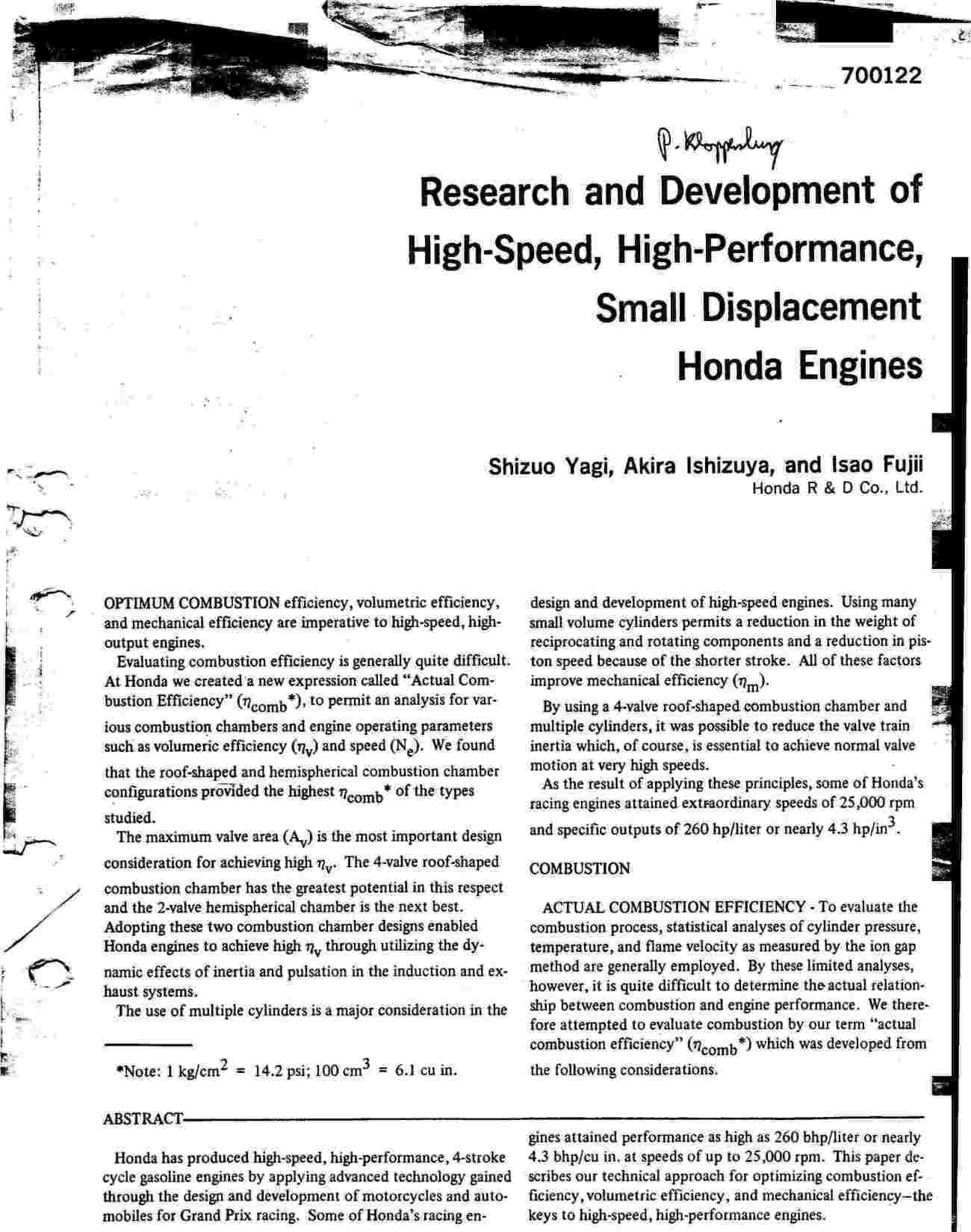

It's not from a magazine so I don't have any details on dates and contact info I'm afraid. I did find the paper number however. It's SAE paper no. 700122. So this could just be 1970. SAE stands for society of automotive engineers and I found their website at www.sae.org

Thanks for posting it, apart from 4 valve roof type chambers, our well known squish type hemi heads rule.

Cheers,

Marcel <mheijd@xs4all.nl

Click on the page you want to see then hit BACK in your browser window

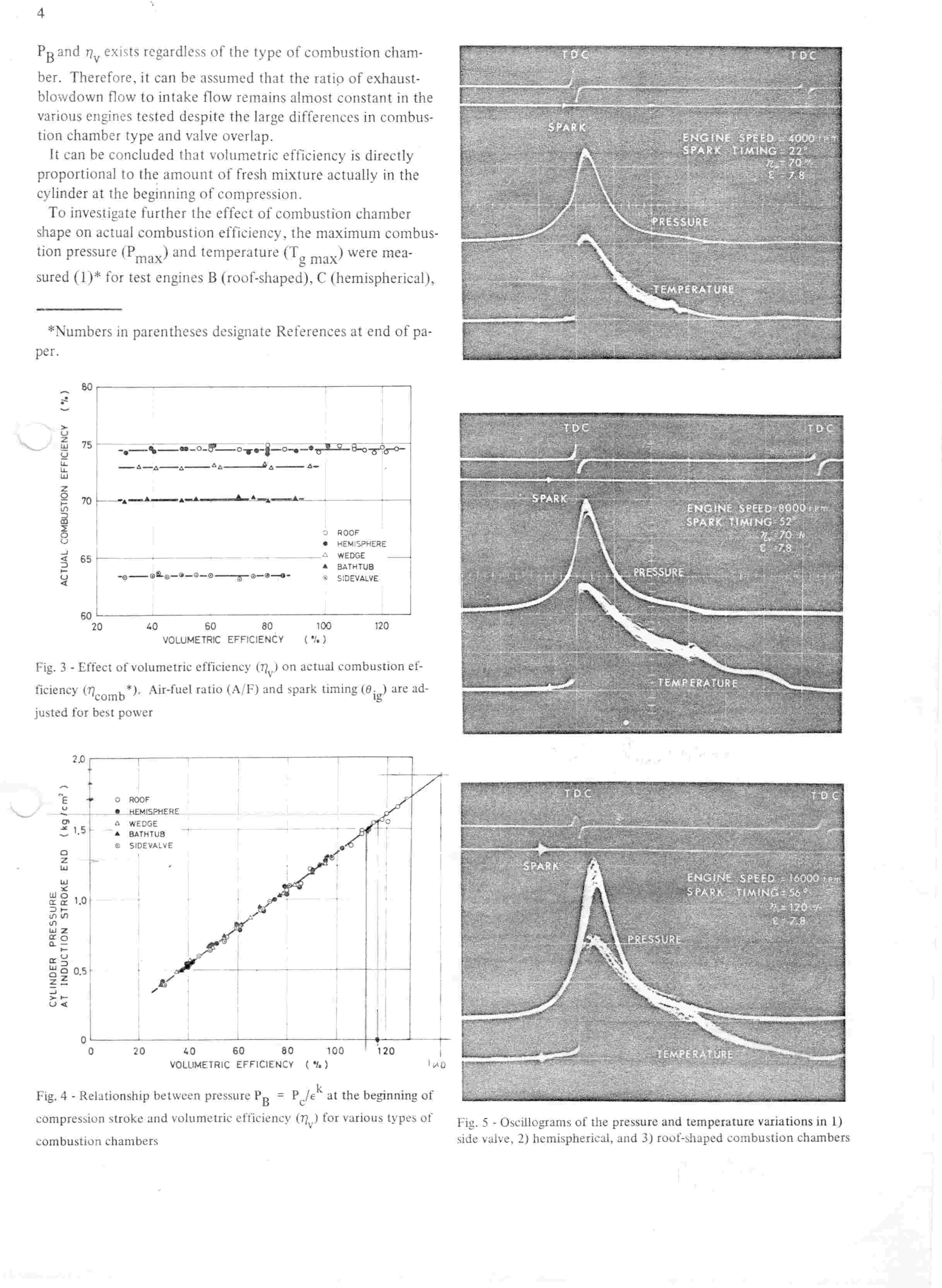

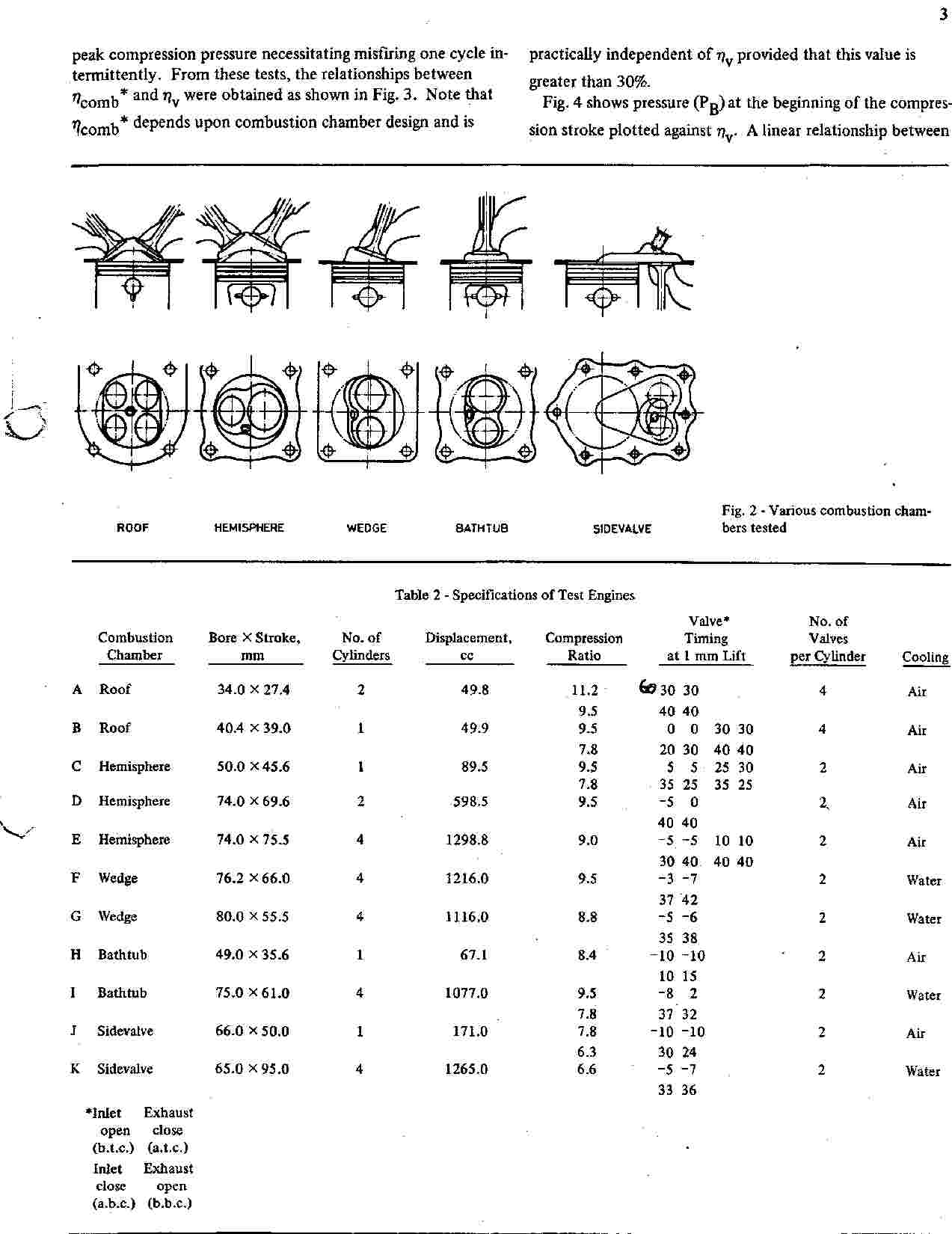

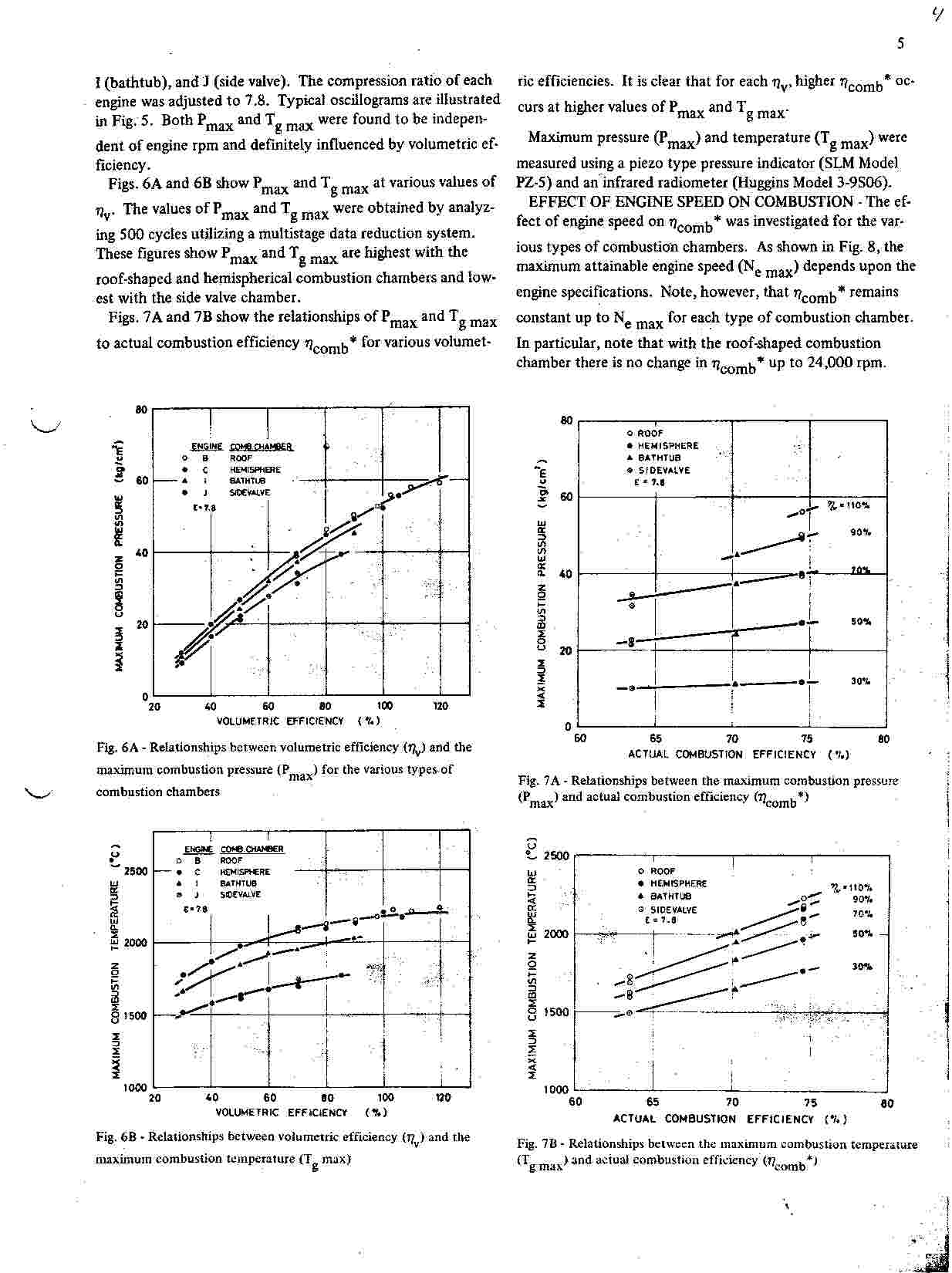

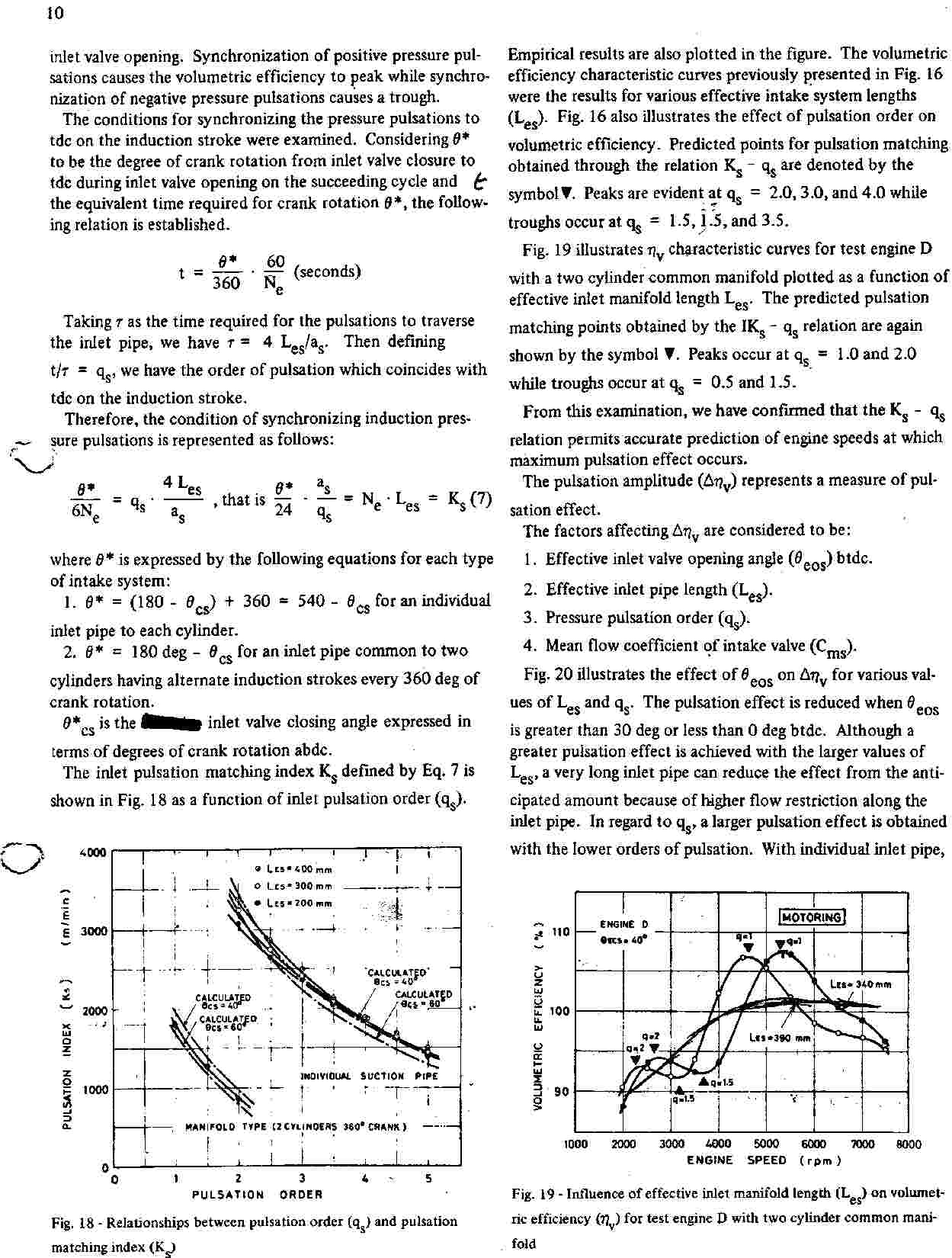

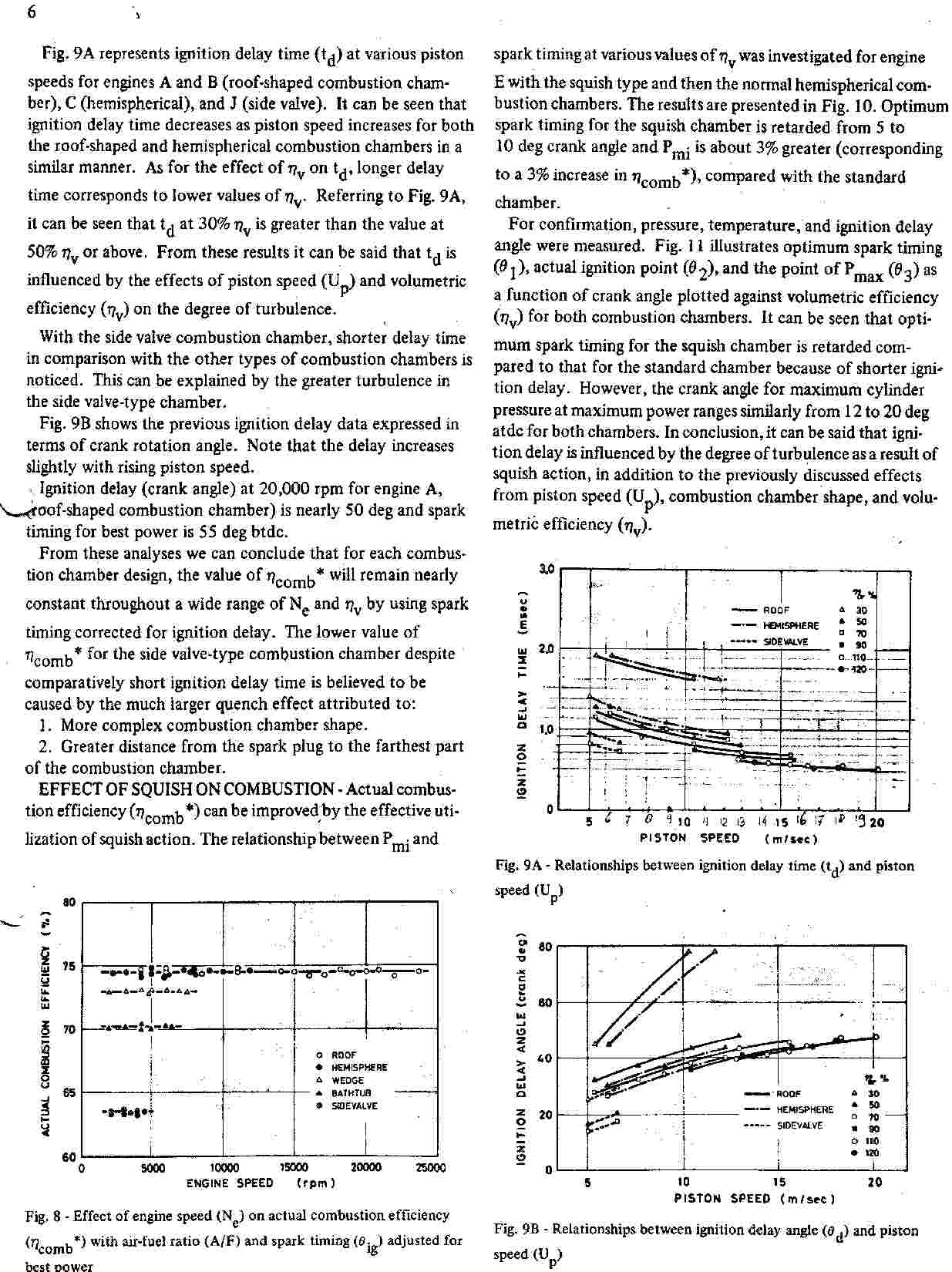

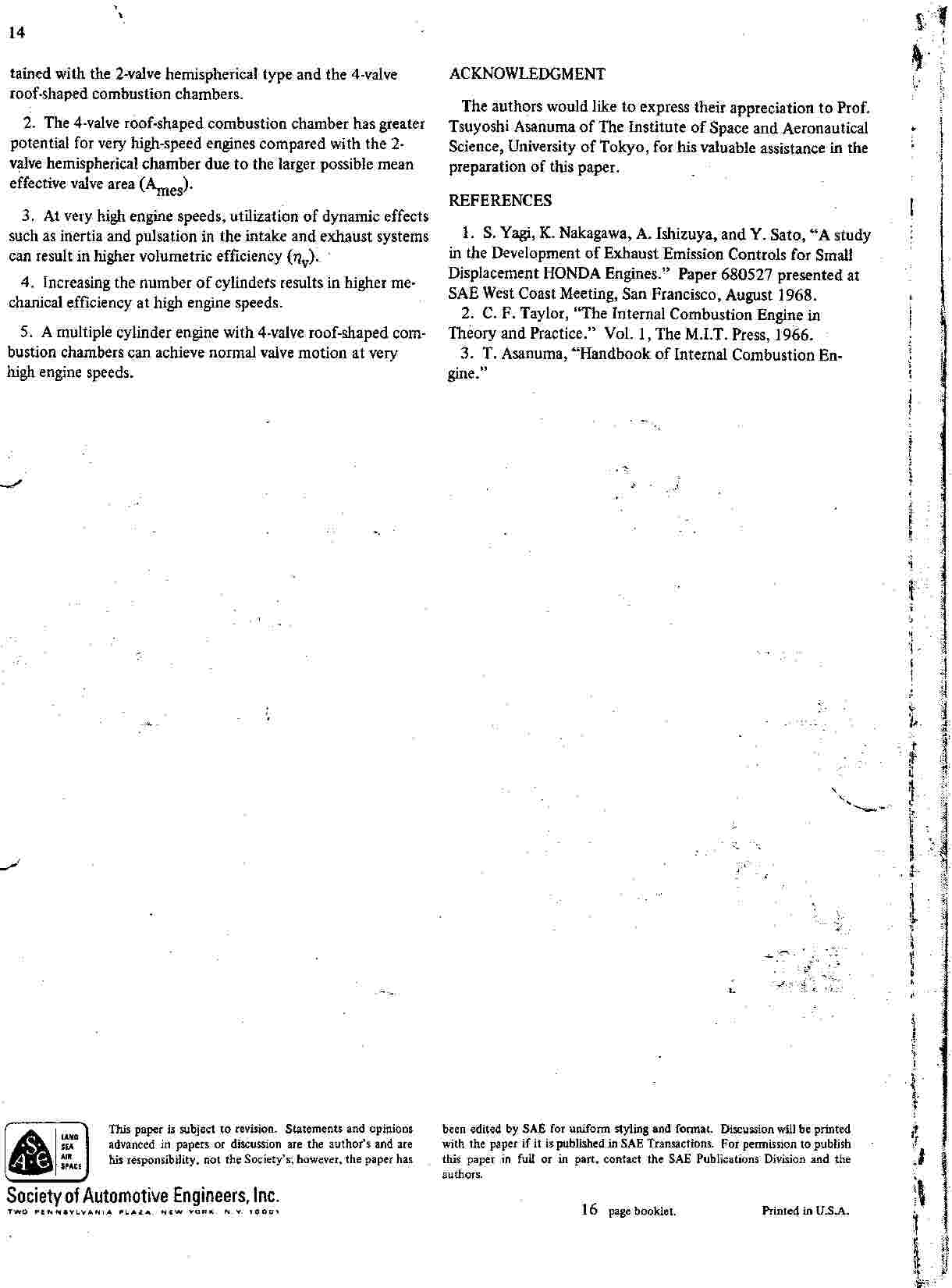

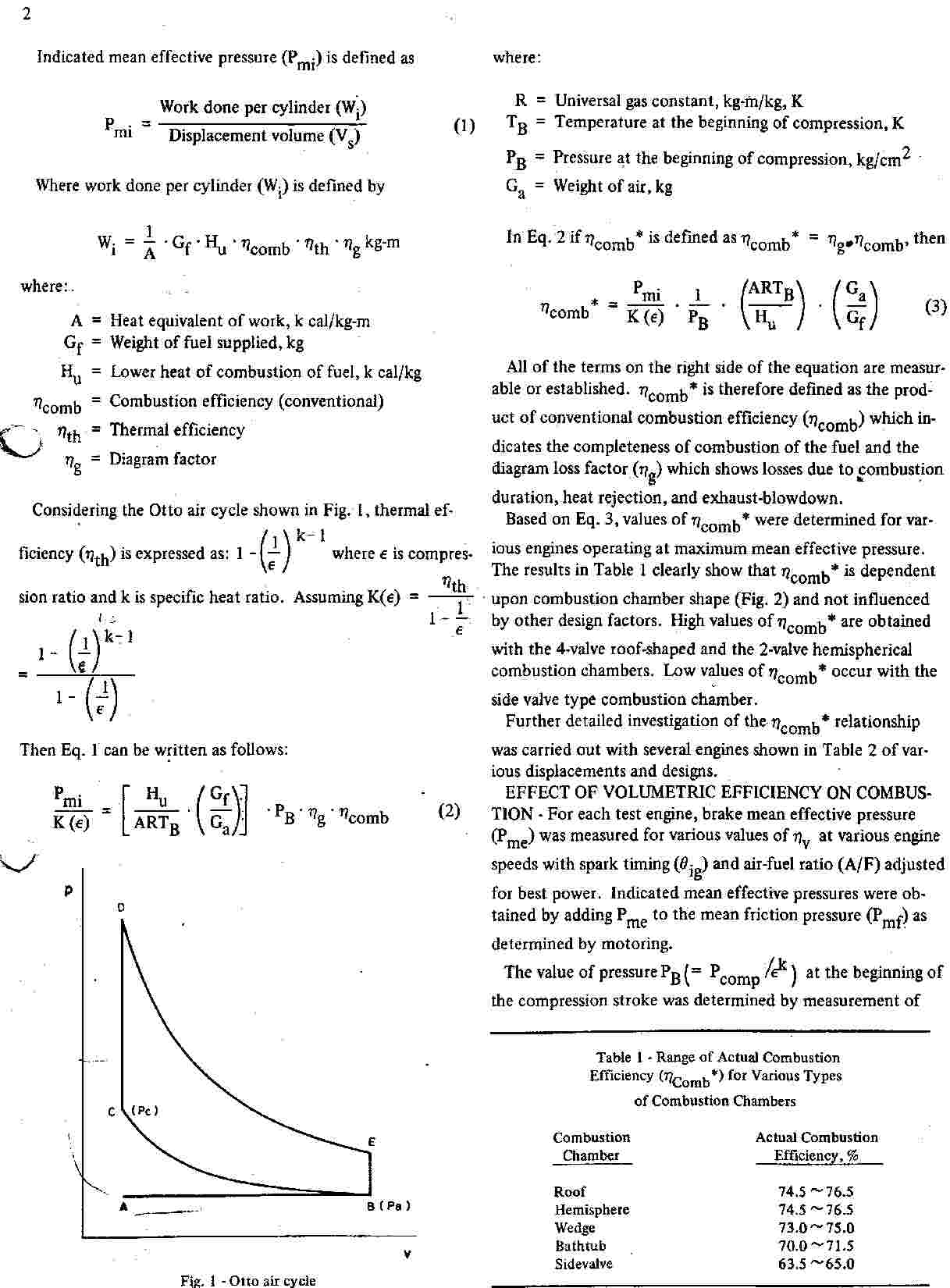

Page 1 Page 2 Page 3 Page 4 Page 5

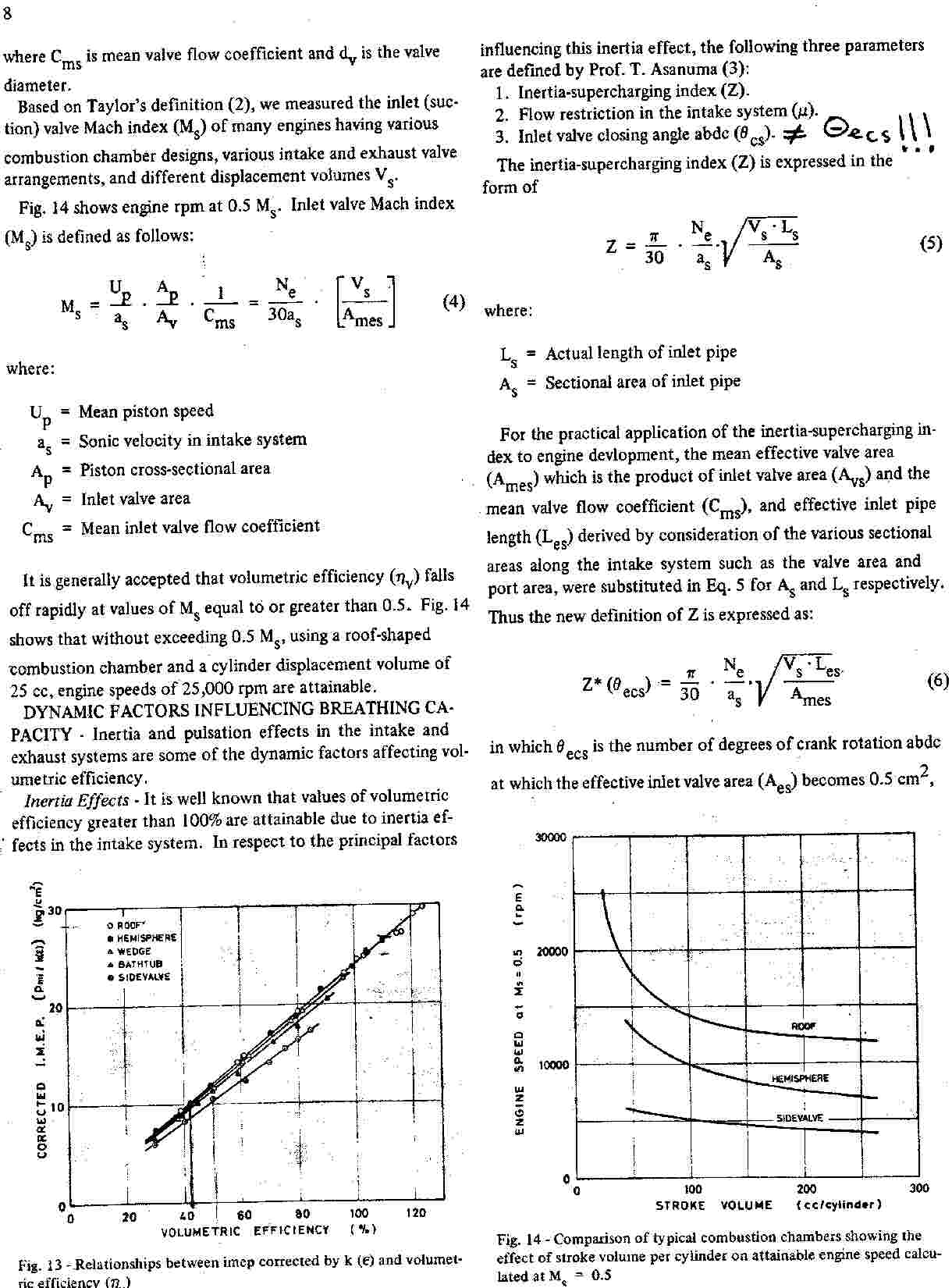

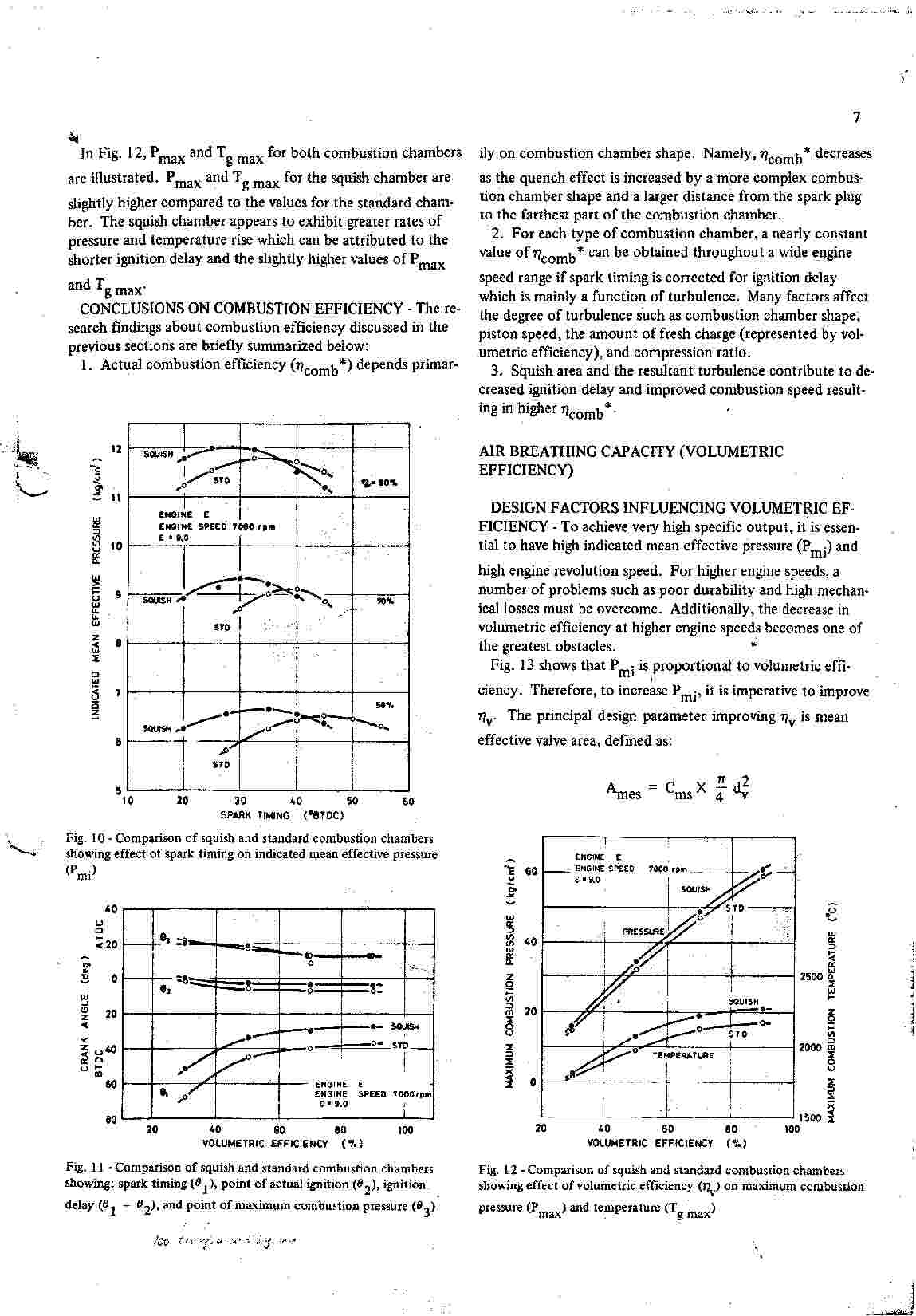

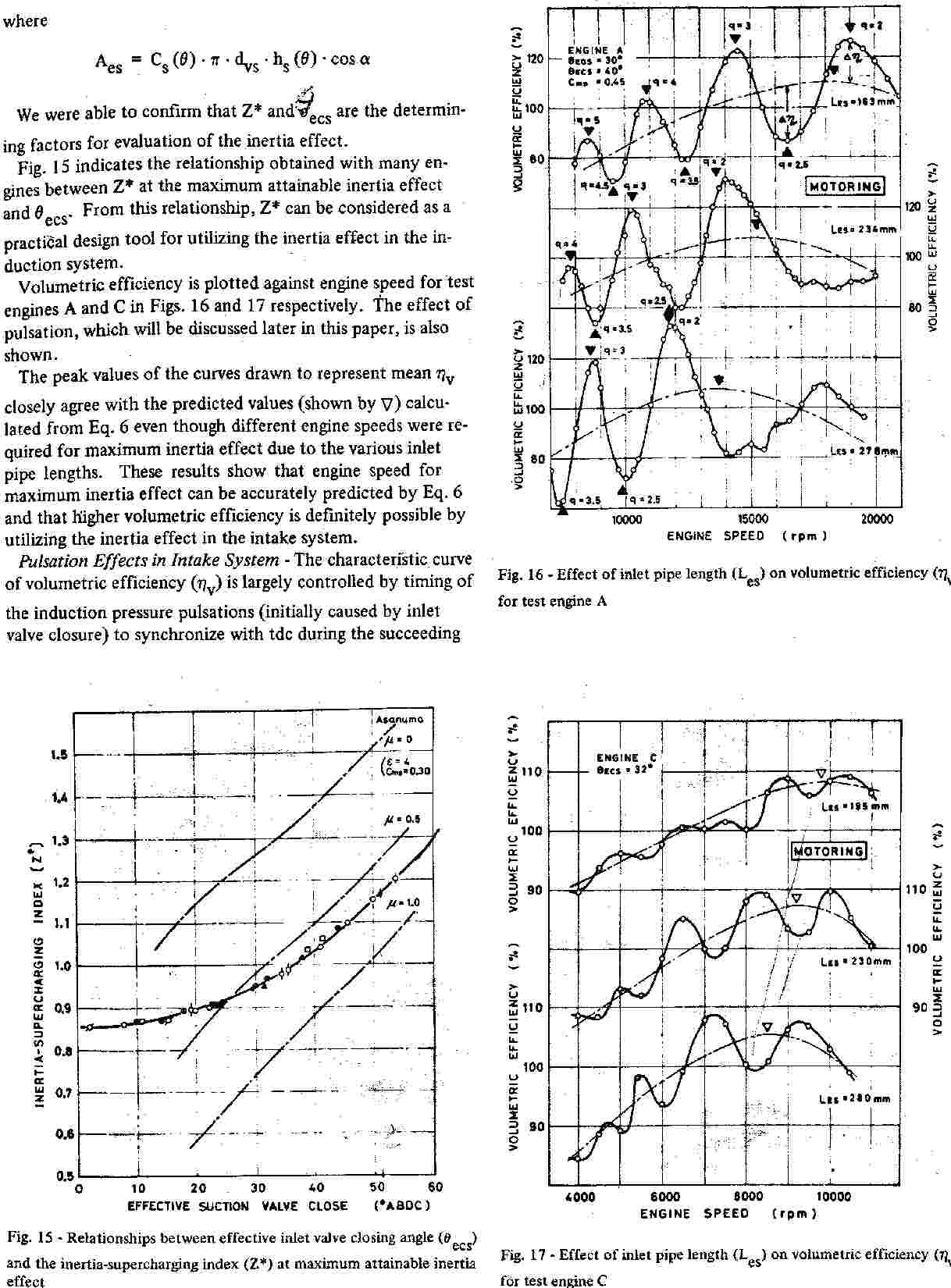

Page 6 Page 7 Page 8 Page 9 Page 10

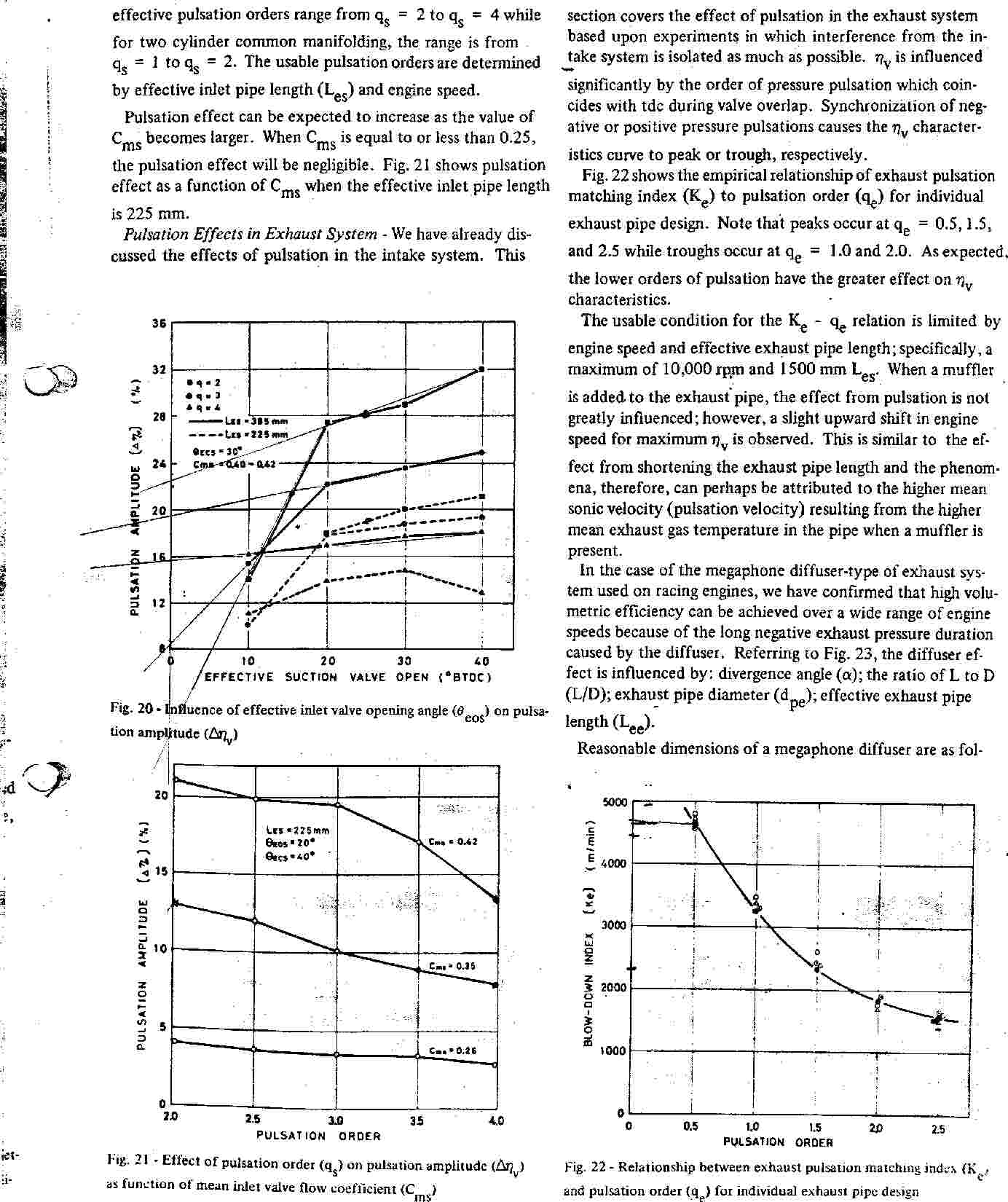

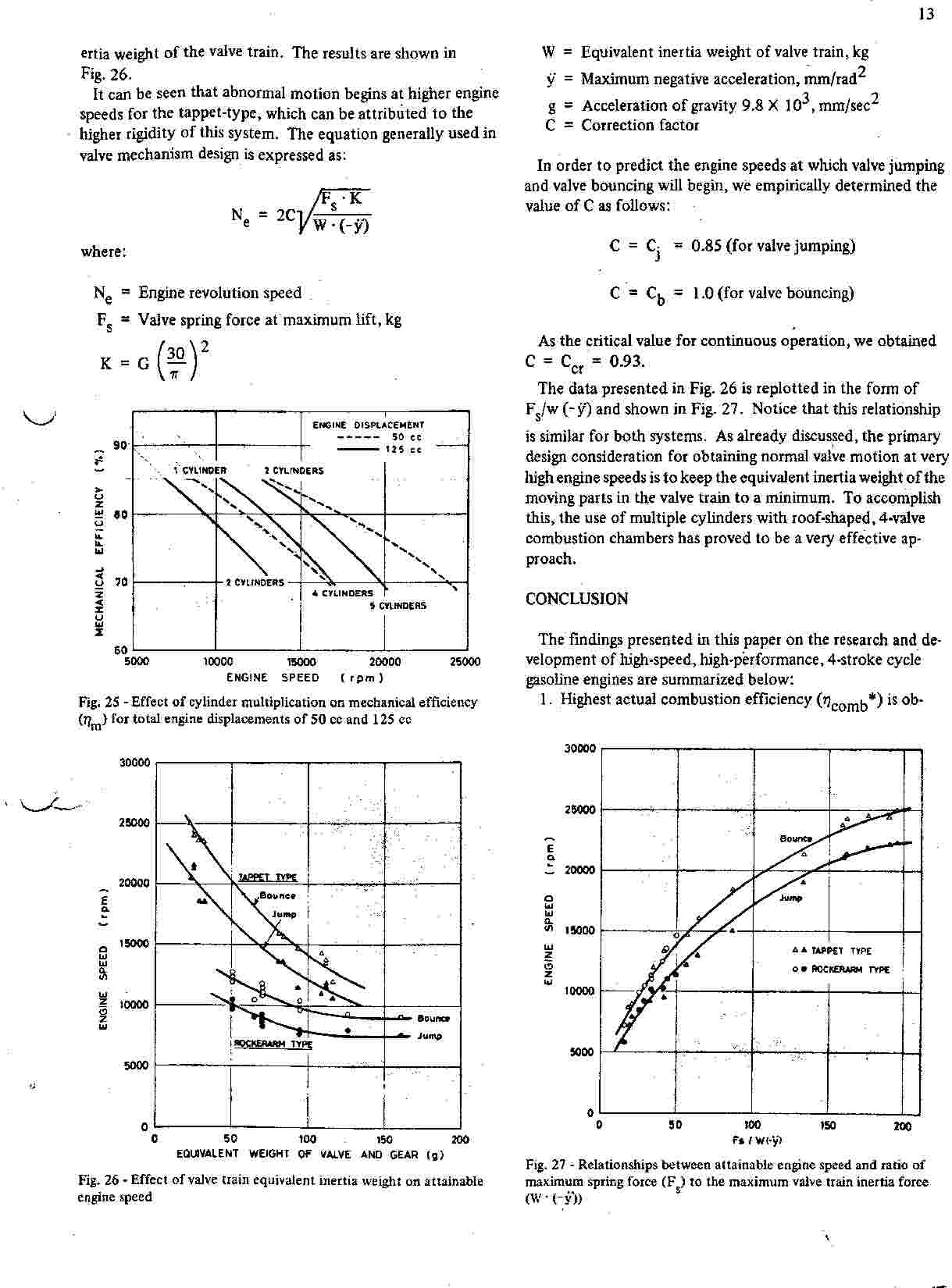

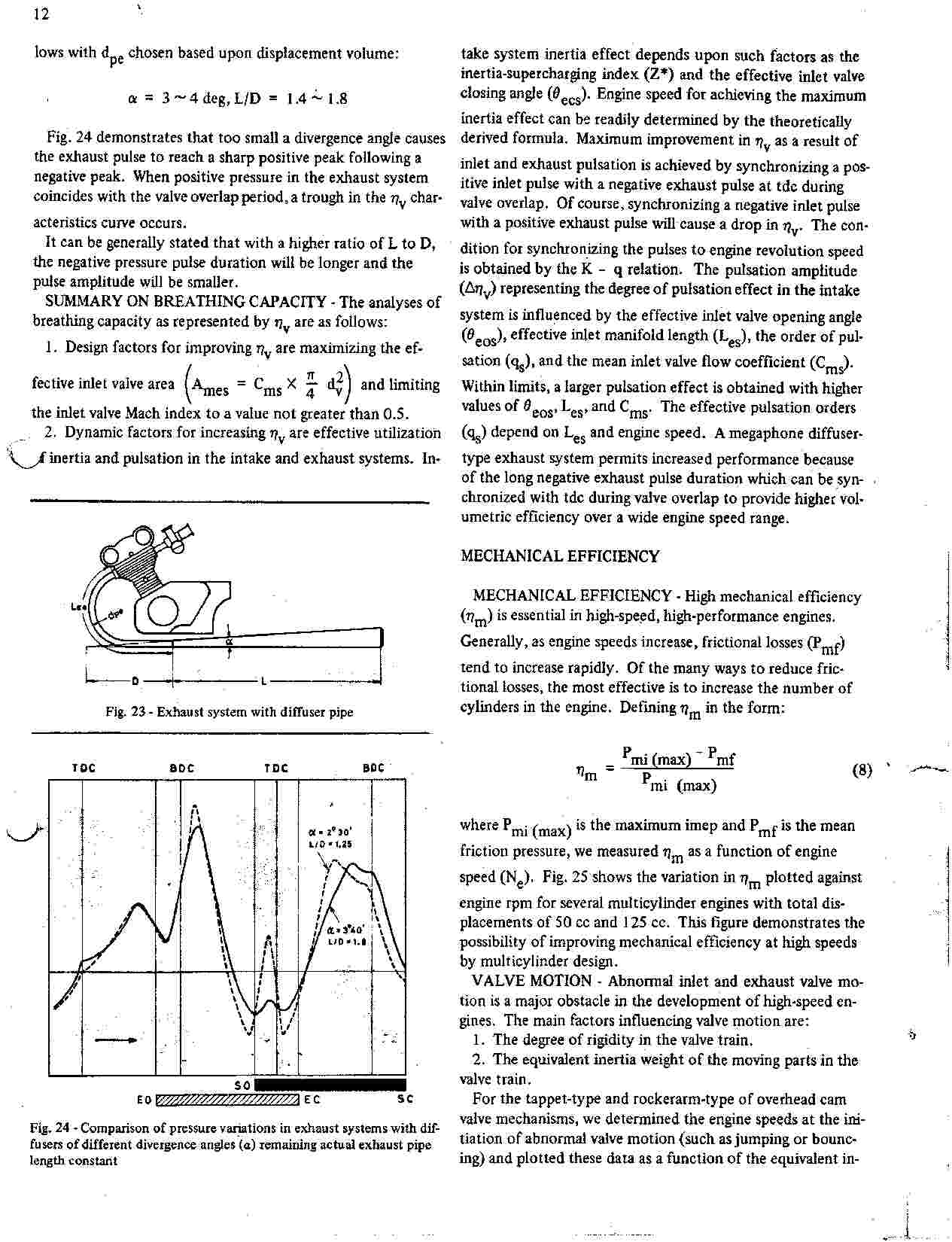

Page 11 Page 12 Page 13 Page 14
